GW1

Nominal size DN: 80 ~ 150
Connection mode: flange
Nominal pressure PN: PN10 PN25
Pressure difference range MPa: 0.01 ~ 0.8 0.01 ~ 1.6
PMA/TMA PMa/℃ : 0.88/250 1.76/350
Shell material: 20#
Download GW1
Features
1. Double balanced double seat design, large displacement.

2. The opening of the valve is freely adjusted, and the condensate can be continuously discharged with the change of the inflow.

3. High performance float design, durable pressure, long service life.

4. Built-in automatic air discharge valve, effectively prevent air blockage, quick start. Compact structure, easy maintenance.

Uses: Widely used in petroleum, chemical, metallurgy, electric power, food, paper and other industries of large steam heating equipment.

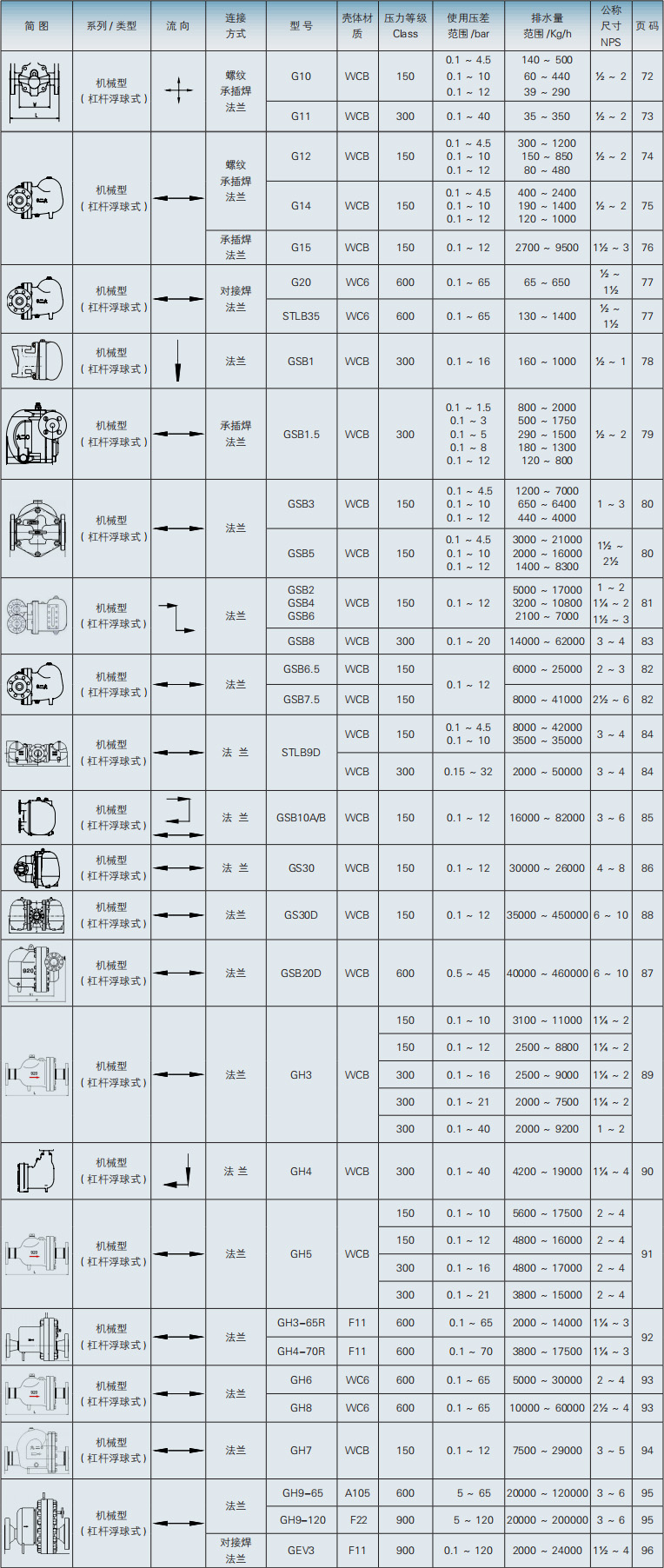

選型速查表
